Customized Solar Mirror
According to different CSP technologies and applications, MODA can provide customized solar mirror/reflectors with different thickness, dimensions, shapes, and other special requirements as clients’ design,to meet the needs of clients for almost all types of solar mirrors and reflectors. ★ Super thin solar mirror ★ Spherical & Dish Shape Mirror ★ Super-narrow strip mirror ★ Sandwich structure heliostat ★ Double-Sides Structure Heliostat ★ Triangle, Pentagon and Octangle shape ★ Other odd shapes mirrors
Main Specification

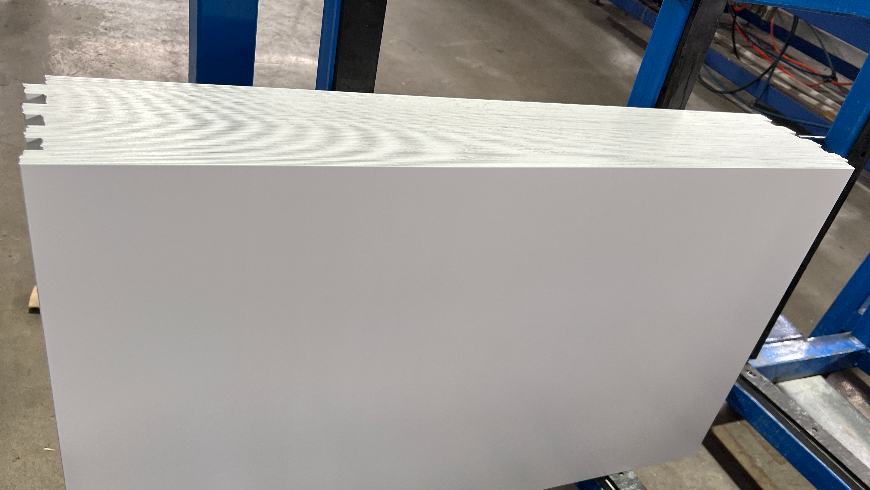

Super thin solar mirror
Thickness from 0.9mm, 1.2mm, 1.8mm, 2.0mm etc., with >95% reflectivity
Spherical & Dish Shape Mirror
Spherical shape with different radius and focus. Thickness 3.0mm,4.0mm, 5.0mm as designed
Super-narrow strip mirror
Mainly applied to micro Liner Fresnel technology. Max.length with 2000mm,Min.width with 50mm
Sandwich structure heliostat
Facet curvature formed, Non-breakable, Higher reflectivity, size to be customized.
Double-Sides Structure Heliostat
Front solar mirror facet+ Al/Silver mirror as backside reflecting facet, dual reflecting facets
Triangle, Pentagon, Octangle shape mirror
Different shapes of mirror to be customized, to achieve more efficiency of solar energy
Odd shape mirrors
Speical odd shape mirrors is available as clients' designs
Main Performance & Characteristics
Super thin solar mirror Easily cooling-processed special shape and curvature. Also available to be cut into small pieces shaping Dish mirror.Widely used for Dish,Spherical and other special shape heliostat

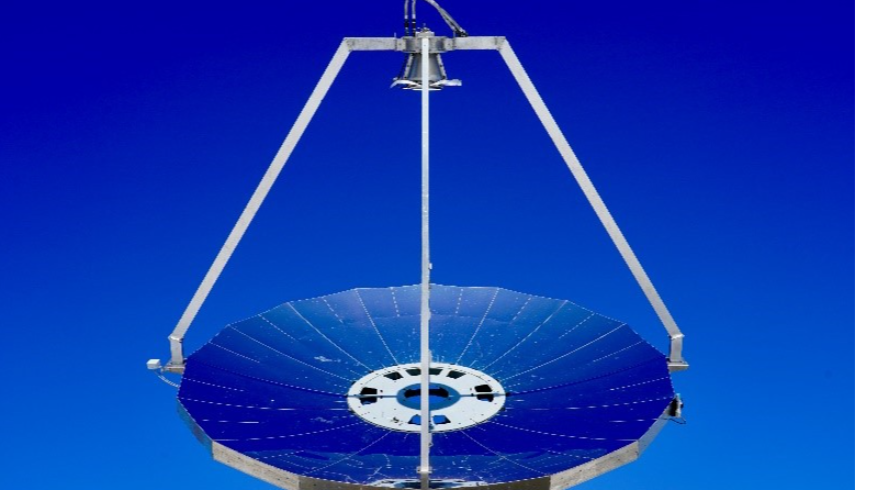

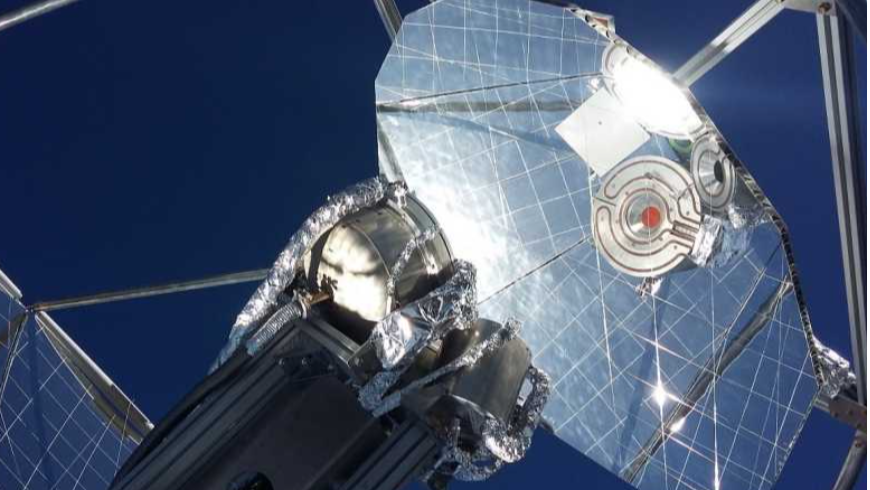

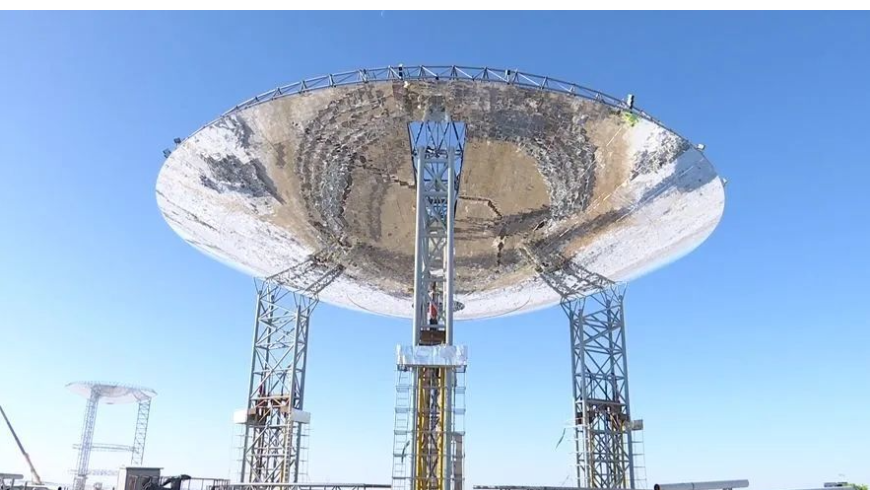

Spherical & Dish Shape Solar Mirror Processed by one-step thermal shaping, to produce spherical shape mirror or dish shape mirror
Super-narrow strip mirror Mainly used for Linear fresnel primary reflector, with adjustable focus length as per clients' design.

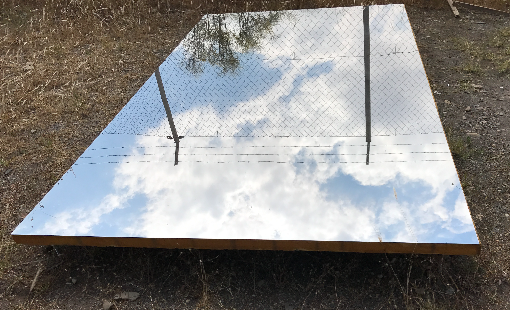

Sandwich Structure Heliostat By using super-thin solar mirror with higher reflectivity, backing with PE material as supporting board, sticking mirror on it to form certain curvature as mirror facet. It can increase concentrating accuracy and safety,mechanical strength,easy assemblying and installation site. Saving cost and improving efficiency
Double-sides structure heliostat For increasing the solar energy utilization, and saving the sunlight scattering loss or shading to collect more solar radiation, this so-called “Double-Sides Heliostat” heliostat is using another regular mirror (Silver or Al mirror) as the backside, to be sticked or laminated with front solar mirror facet. this design enables to reflect the shaded sunlight again on heliostats, and reducing the entire solar energy loss

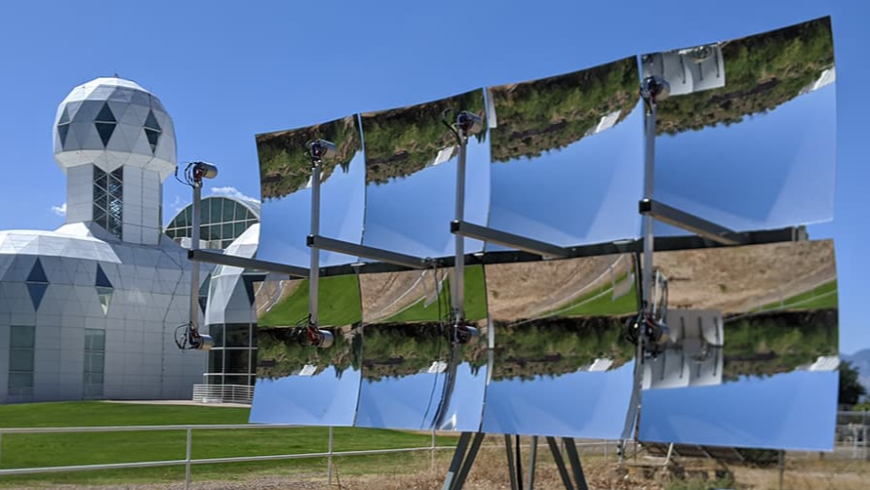

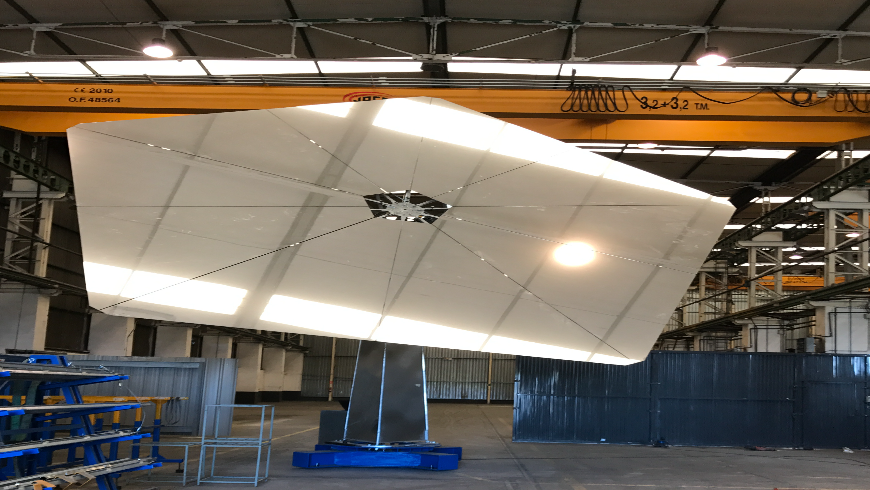

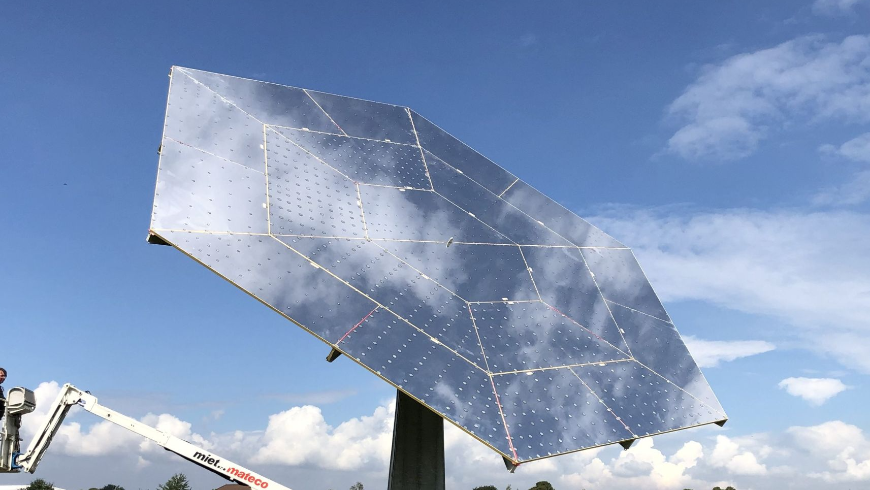

Triangle, Pentagon,Octangle shape mirror For achieving higher concentrating ratio, these special shape mirror can be processed as design
Odd shape mirrors To be customized as per clients' design, to process odd shape mirorr for higher effiency of solar field
Application Pictures

Tower Applications

Linear Fresnel Applications

Others
