Flat Solar Mirror

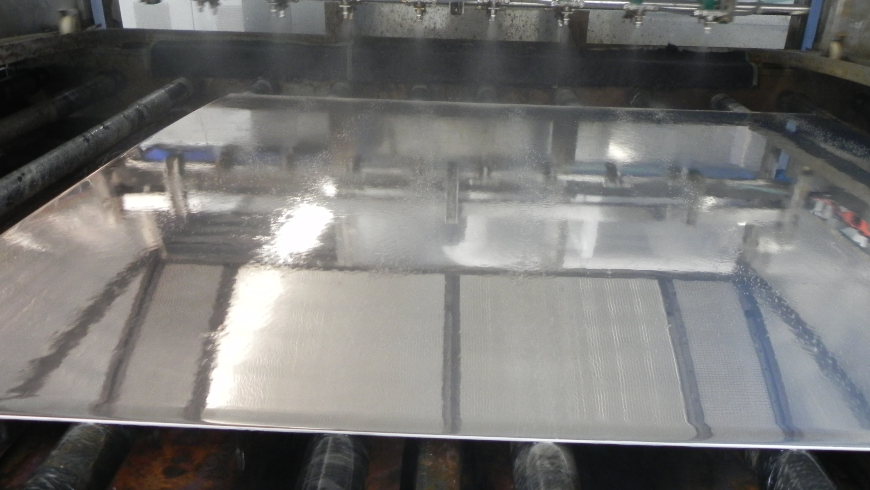

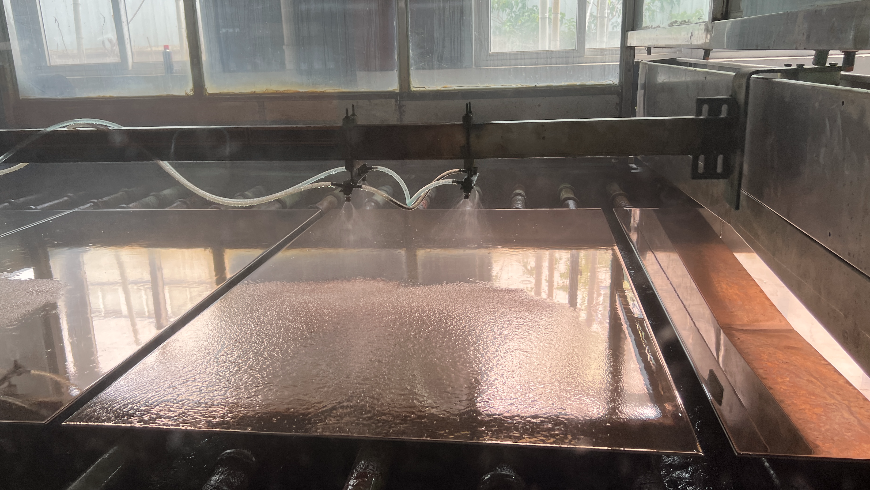

Widely used for Tower Power and Linear Fresnel CSP technology. As the heliostat or primary mirror reflector, MODA flat solar mirror is taking to use ultra low-iron float glass with highest transmittance as its substrate, then processed with the chemical coating technics. First layer with silver coating as its reflective layer, then copper layer , finally Three-paints layers to be coated as its special protection, to resist strong UV radiation, corrosion, sand-storm and other harsh environments. After decades of practice and verification demonstrated in plenty of CSP projects, MODA solar mirror lifetime is proved enabling to service 25years even much longer. Based on our rich experiences in solar mirror manufacturing and commercial supplying references,We can provide overall solutions from solar mirror design, prototype selection, production,assembly, packaging, transportation till the on-site installation guidance etc.,. according to clients' different technical requirements. Relying on strongly professional manufacturing capability, we're improving our solar mirror's optical performance consistently. The reflectivity from 93% to 96% are optional as client's specification. (Measured solar spectrum from 250nm-2500nm, ISO9050,AM1.5 standard, testing by LAMBDA1050 device)
Main Specification
Thickness
0.8mm,1.0mm,1.8mm,2.0mm,3.0mm, 3.2mm,4mm,5mm etc.,
Size
Min.150x150mm; Max.3660x2400mm, special sizes as clients' request
Solar Reflectivity
93%-96% based on ISO9050 (AM1.5) standard
Annual Capacity
6 Million SQM
Main Performance & Characteristics
Strict ITP procedure and QC system assurance
Excellent durability capability, with 25years+ lifetime, resisting the harsh environment like desert, Gobi, costal area, heavily-polluted industrial area, extremely freezing, high-humidity, high temperature, high-SO2 content etc.

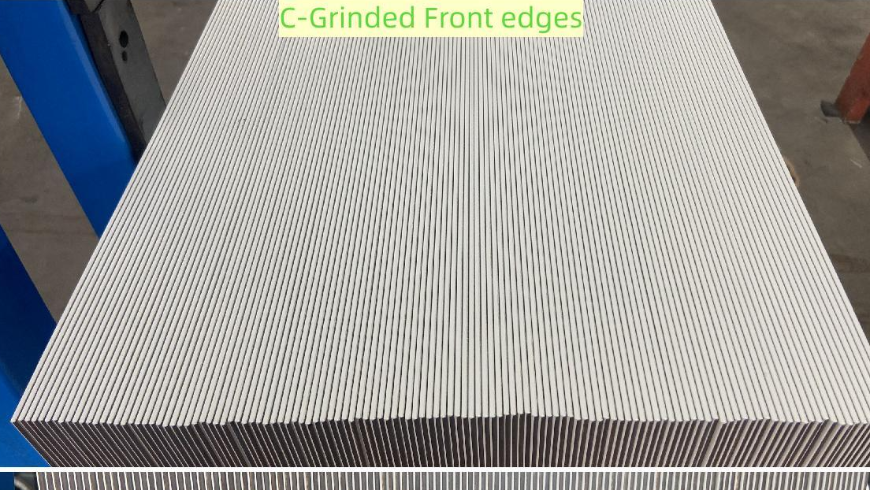

Additional edge protection with improved durability
Excellent mechanical strength and flatness
Plenty of Domestic and Overseas commercial CSP projects references
Approval and cooperation with reputable international CSP EPC and Developers. Bankability
Excellent Solar reflectivity and higher Concentrating ratio
Competitiveness with cost improvement
Application Pictures

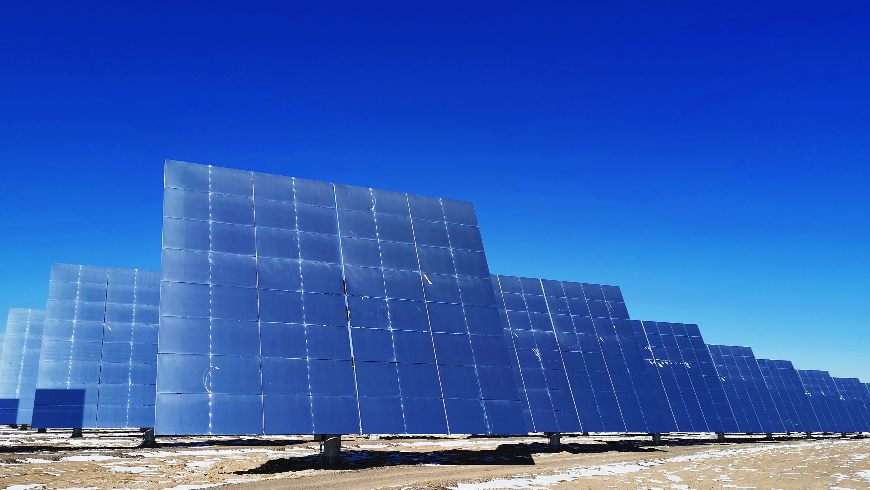

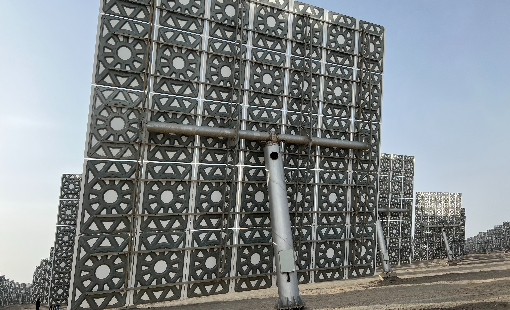

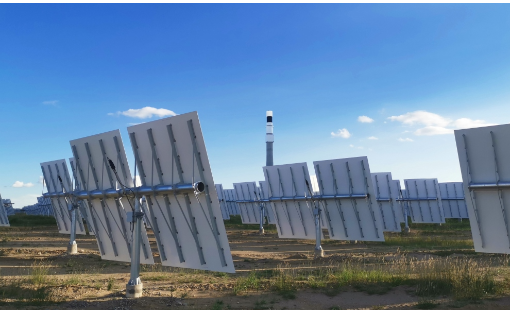

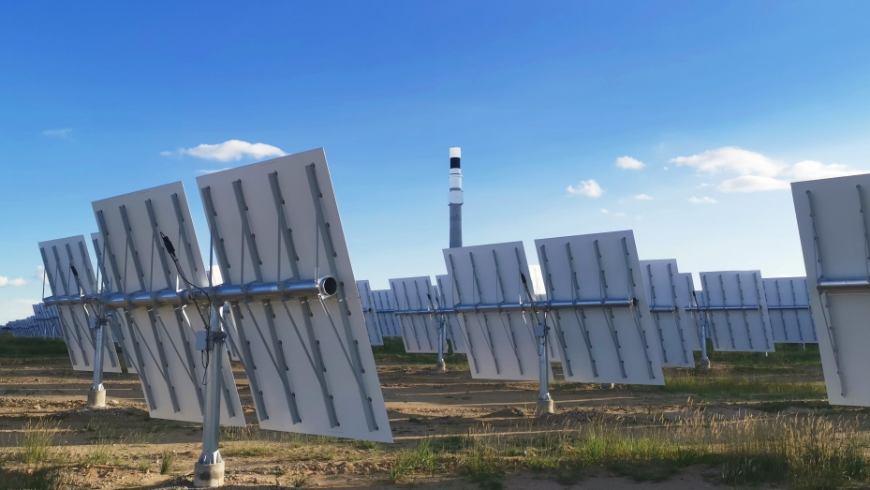

Tower CSP Applications

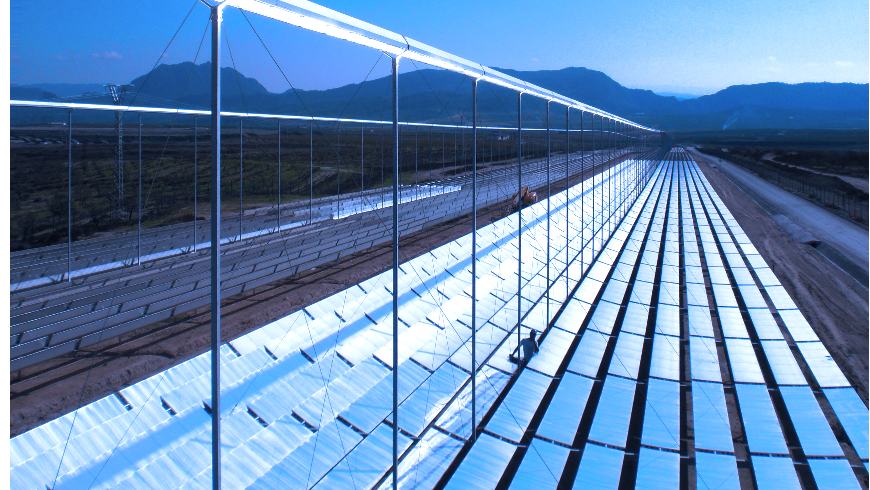

Linear Fresnel CSP Applications

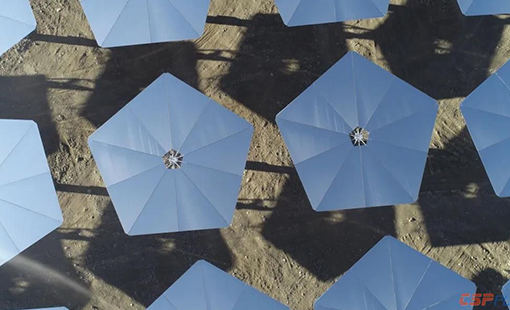

Others
