Micro-Curvature Solar Mirror
Micro curvature solar mirror: Also so-called primary reflector, is mainly applied to Linear Fresnel technology or micro-heliostat design for tower power technology. By means of bending and tempering processing, to shape the flat low-iron float glass into certain curvature, then to be processed with similar coating layers as regular solar mirrors, and finally become the solar mirror with certain curvature and focus length. It doesn't require the client to adjust the radiation or shape in the mirror field assembly process, which is not only able to achieve better concentrating accuracy and solar radiation intensity, but also greatly to improve the solar field installation efficiency. This micro-curvature solar mirror, is mainly used to replace mechanical-shaping or cold-bending process, with higher accuracy and better consistency. It will greatly improve the efficiency of mirror filed installation and save the related costs.
Main Specification
Size
Thickness with 3mm, 4mm, 5mm, 6mm, and different sizes with min.300mm on width, 2000mm on length
Varied focus length and curvature
such as Radius from 6000mm-12000mm, or different rim angle reflectors
FDx(focus Deviation in X-axis)
Average FDX (Focus Deviation in X-axis): <=10mm
Interfactor by Laser (For IC70mm)
Average Interfactor by Laser (For IC70mm): >98%
Solar Reflectivity
Full range of solar wavelength from 250nm-2500nm (ISO9050,AM1.5) reflectivity: >94%
Main Performance & Characteristics
Strict ITP procedure and QC system assurance
Excellent durability capability, with 25years+ lifetime, resisting the harsh environment like desert, Gobi, costal area, heavily-polluted industrial area, extreme freezing , high-humidity,high temperature, high-SO2 content etc.
Additional edge protection with improved durability
Excellent shape accuracy and highest concentrating ratio
Fully-tempered, higher mechanical strength and safety
Higher reflectivity & Concentrating efficiency
Domestic and Overseas commercial CSP projects references to be approved
Approval and cooperation with reputable international CSP EPC and Developers. Bankability
Different size, focus length, aperture to be customized
Competitiveness with cost improvement
Assembling solution to be provided, easily assembled and installed on site. Saving cost, increasing installation accuracy and concentrating efficiency
Application Pictures

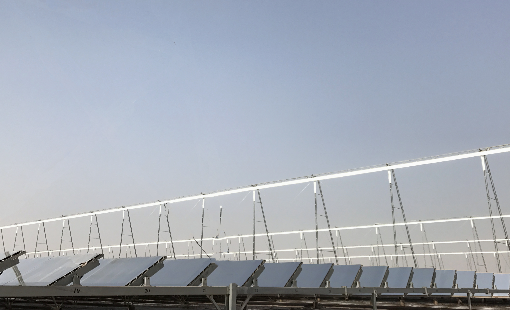

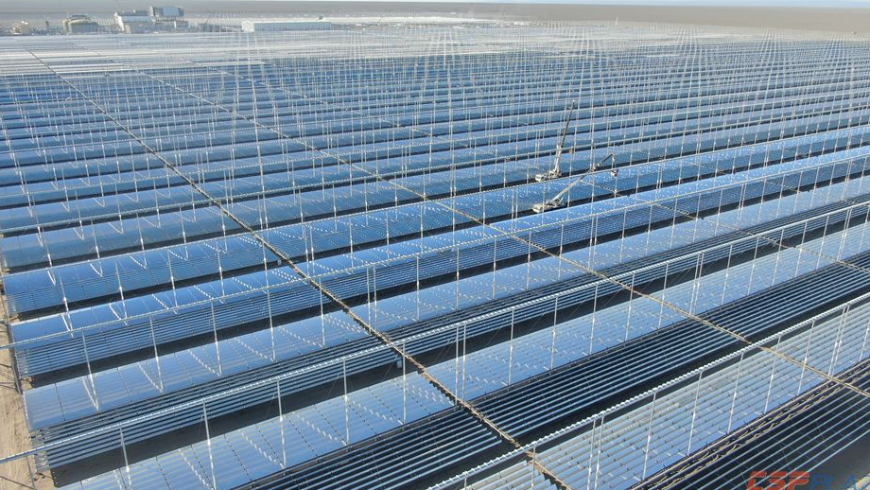

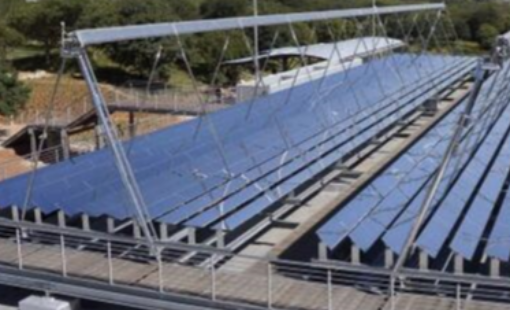

Linear Fresnel Applications

Tower Applications

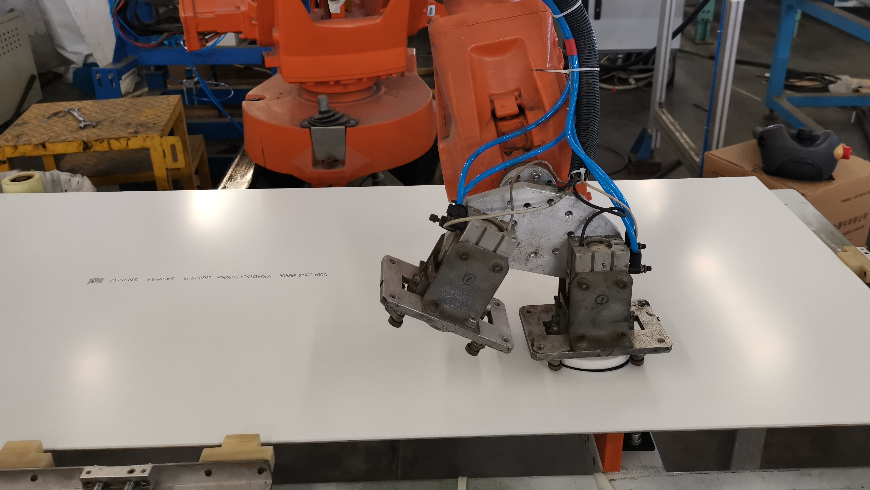

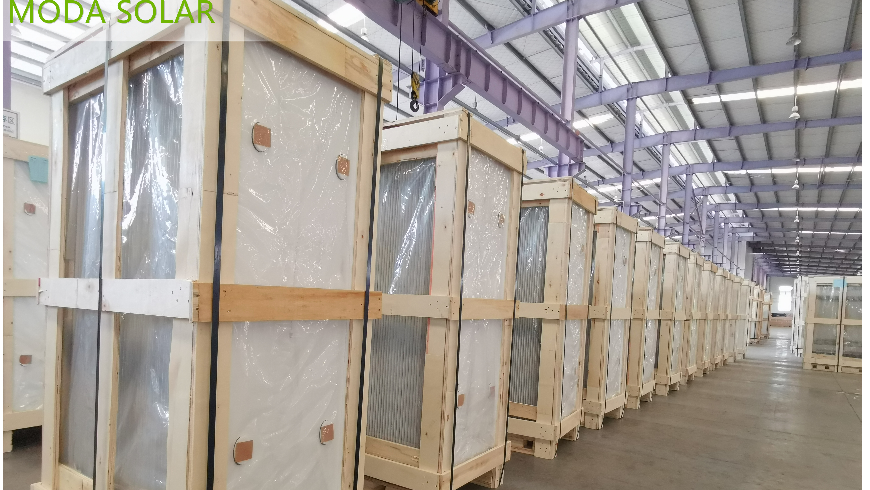

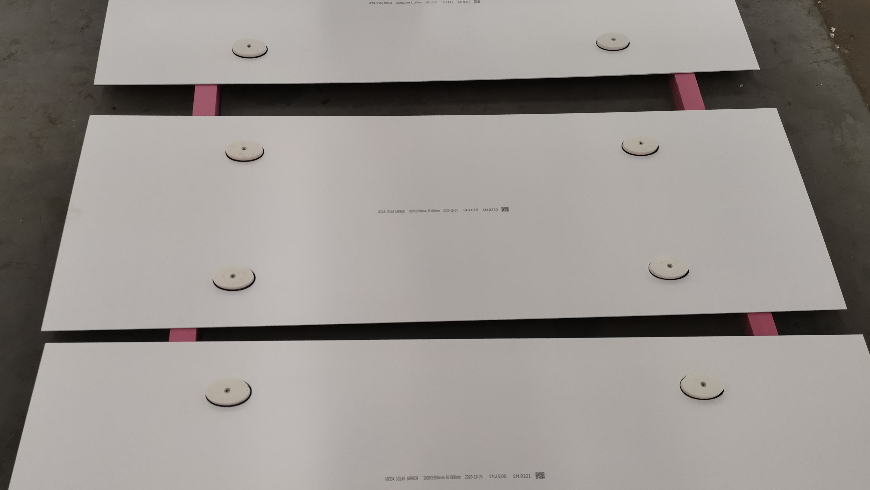

Others
