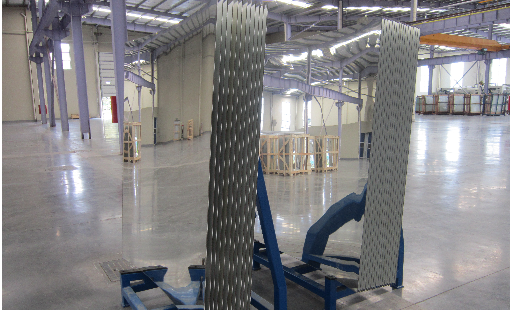

Parabolic Trough Solar Mirror

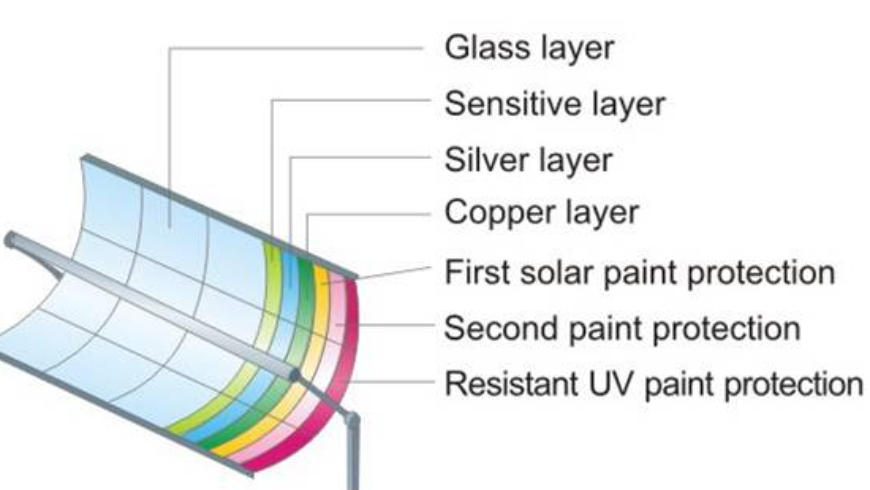

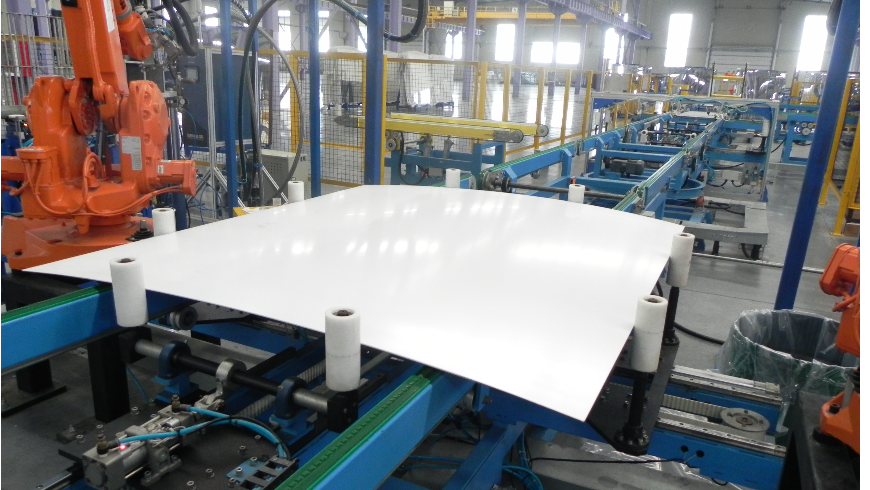

MODA SOLAR, as the pioneer in China to be engaged in manufacturing of Parabolic Trough solar mirrors , firstly introduced the professional bending and tempering furnace from GLASSTECH in U.S , and built the customized parabolic solar mirror line in 2012. This line is equipped with the most advanced shape accuracy inspection system from CSP SERVICES in Germany, and optical reflectance device LAMBDA1050, ensuring each of parabolic trough mirror with excellent concentrating ratio and reflectivity. MODA parabolic trough mirror, uses ultra low-iron float glass with extremely high transmittance as its substrate, firstly processed going through the professional furnace to be bended into parabolic trough shape,synchronously to be fully-tempered. Thus it can ensure the parabolic shape accuracy and quality consistency. This tempered mirror glass can provide the much higher mechanical strength and rigidness than regular only-bending solar mirror. Then this tempered shape-formed ultra-glass ,by using of our reliable chemically-depostion coating technique, to be processed through our tailored mirror production line, successively coated with silver reflecting layer, copper layer, and 3 different protective paint layers including base,intermediate and top layers,finally to be achieved its excellent concentrating ratio, with the highest solar reflectivity and strongest durability. Our parabolic trough solar mirror has been widely used in various of harsh environments, such as desert, Gobi, costal area, heavily-polluted industrial area, extreme chilly and dried, high humidity and temperature conditions. It has been commercially verified and approved. MODA parabolic trough solar mirror, is not only widely used in CSP power plant, but also in STE industry and residential field to produce high,medium and low temperature solar steam and hot water. Such as supplying the complementary steam for conventional coal-fire power plant, mining industry, oil exploration, refining, steel and cement industries, solar fuels production, hydrogen & Ammonia production, as well as food , beverage processing, laundry, pasteurization industries etc.

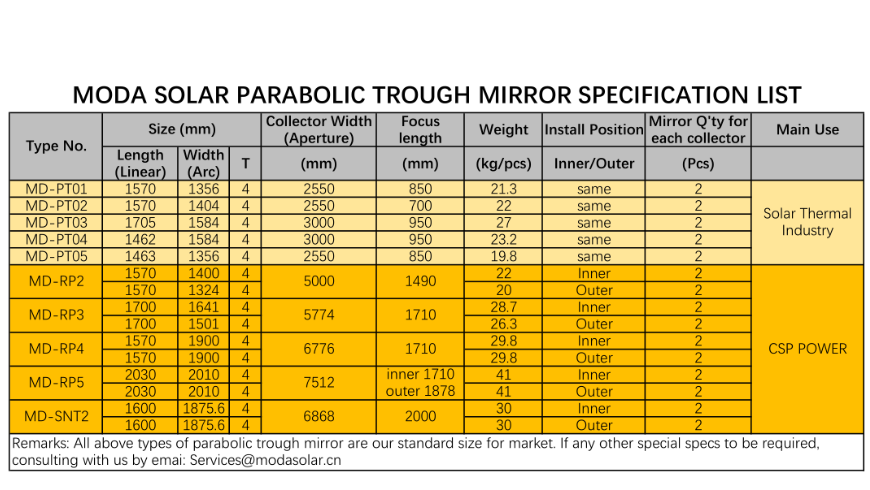

Main Specification
Thickness,focus length,Aperture
Thickness from 3.0mm, 4.0mm, 5.0mm, different focus length and aperture can be customized
Average Focus accuracy in FDX
Focus deviation in X-axis: <=7mm
Average Interfactor accuracy by Laser
For IC70mm: >=99%
Solar Reflectivity
>=94% based on 250nm-2500nm,ISO9050,AM1.5
Annual Capacity
2Million SQM
Main Performance & Characteristics
Strict ITP procedure and QC system assurance
Excellent durability capability, with 25years+ lifetime, resisting the harsh environment like desert, Gobi, costal area, heavily-polluted industrial area, extremely freezing, high-humidity,high temperature, high-SO2 content etc.
Additional edge protection with improved durability
Excellent shape accuracy and highest concentrating ratio
Fully-tempered, higher mechanical strength and safety
Higher reflectivity & Concentrating efficiency
Domestic and Overseas commercial CSP projects references to be approved
Approval and cooperation with reputable international CSP EPC and Developers. Bankability
Different size, focus length, aperture to be customized
Competitveness with cost improvement
Application Pictures

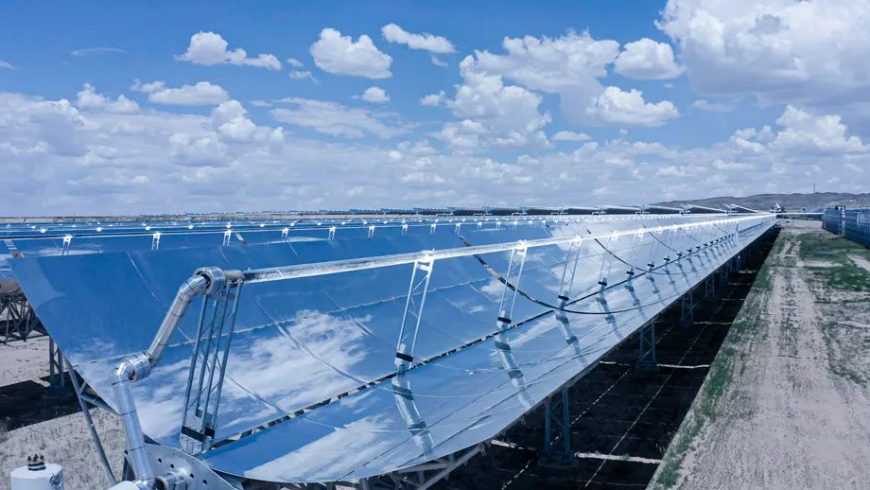

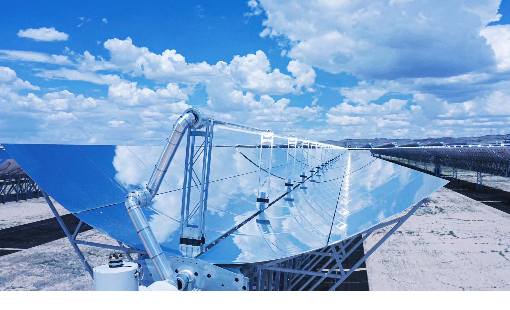

CSP Power Plant Applications

Industrial STE Applications
