Secondary Reflector

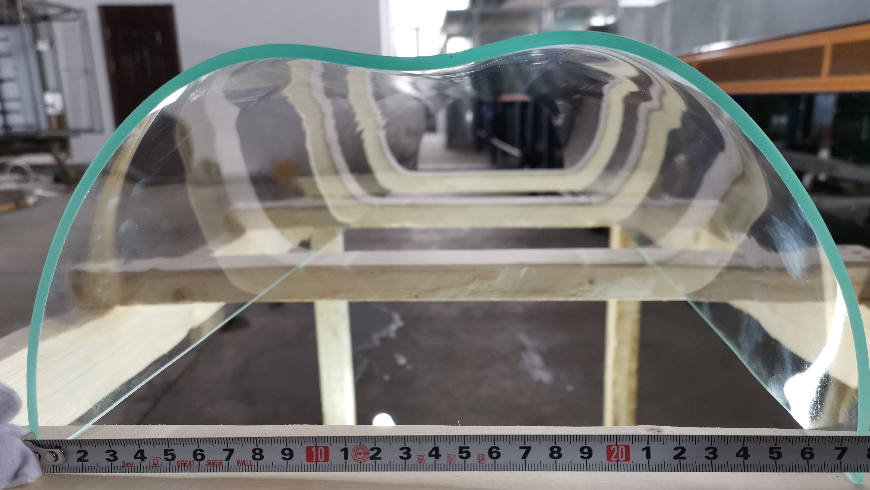

The secondary mirror/reflector It's mainly applied to Linear Fresnel CSP technology for the RECEIVER, to capture and collect the scattering or distorting sunlight reflected by primary mirror reflector, by using its curved reflecting shape, to reflect these scattered sunlight onto the receiver tube again, Thereby it will increase the concentrating effect, and finally improve the energy efficiency of whole solar field system. The secondary reflector, is usually combined with two pieces of curved reflector mirror, or directly to make up of one single piece of “M” shape mirror reflector. It has the features with high accuracy shape, high reflectivity, high-temperature resistance and strong durability.
Main Specification
Thickness
2mm, 3mm, 4mm
Available Shape

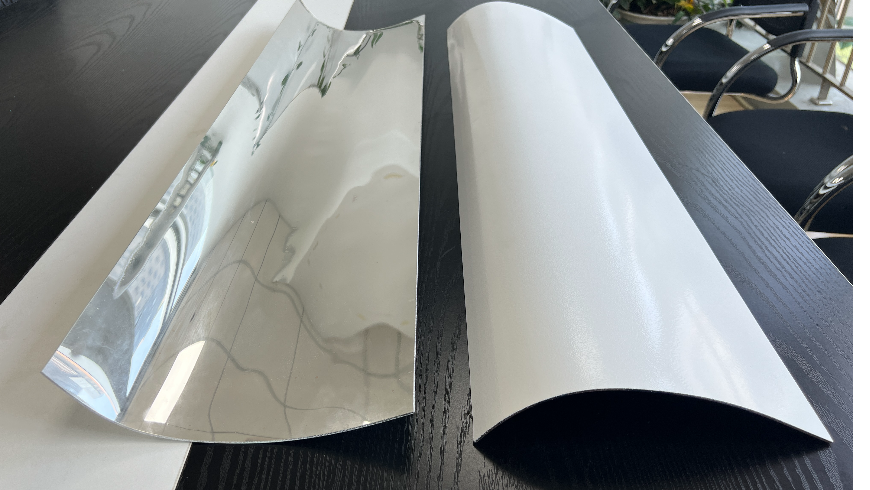

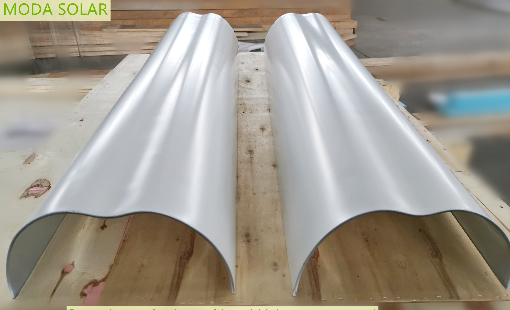

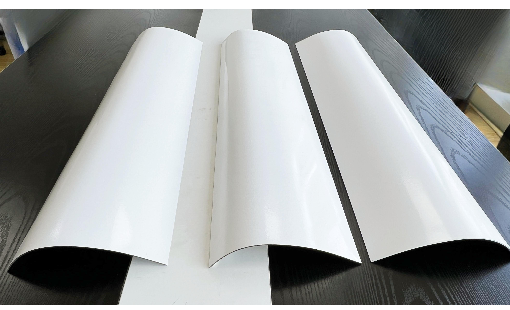

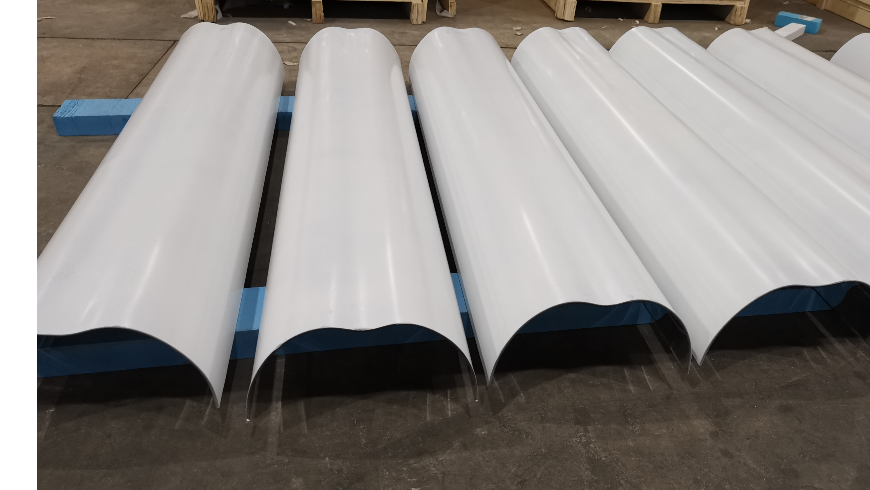

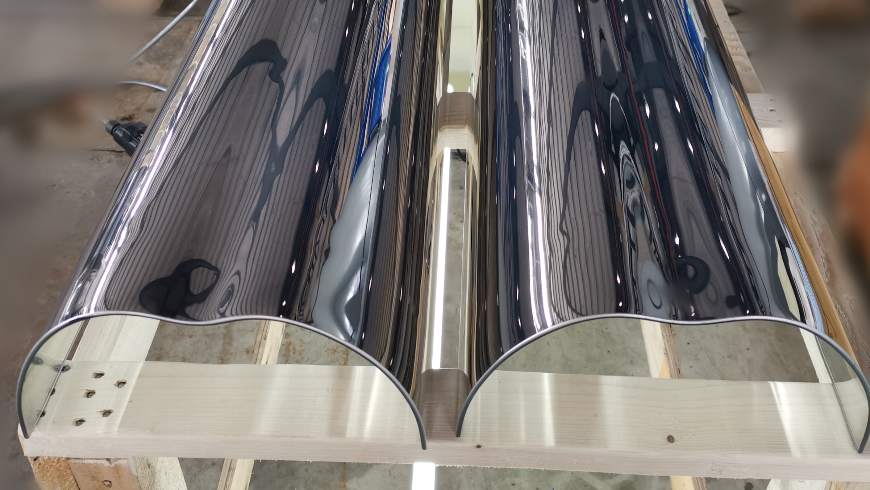

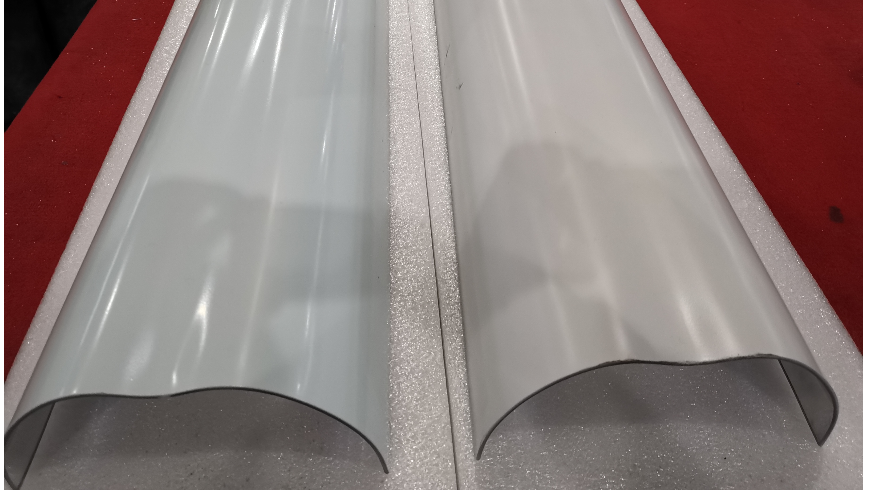

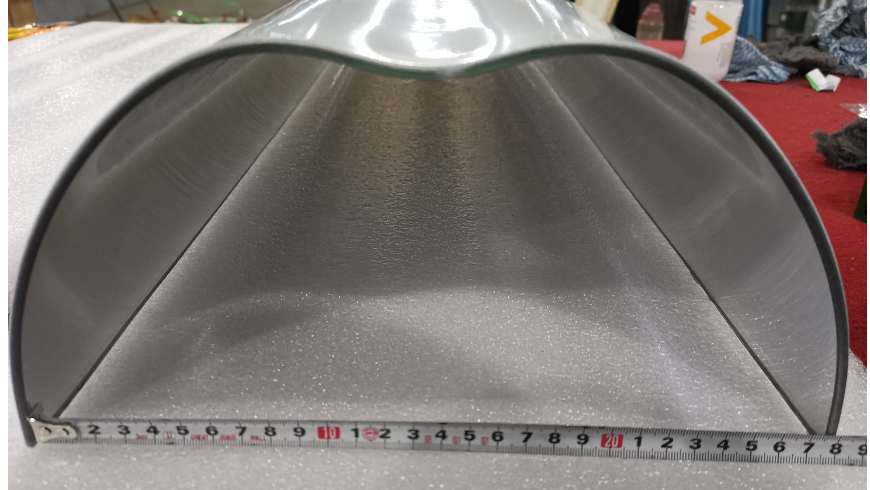

Arc-shape,Spherical Shape, “M”-Shape, or other shapes as customized
Length
300mm to 2000mm
Hight accuracy shape and curvature
By highly-precise molding process
Reflectivity
>92% measured from 250nm-2500mm, based on Standard ISO9050,AM1.5
Main Performance & Characteristics
Strict ITP procedure and QC system assurance
Excellent durability capability, with 25years+ lifetime, resisting the harsh environment like desert, Gobi, costal area, heavily-polluted industrial area, extremely freezing , high-humidity, high temperature, high-SO2 content etc.
High-temperature resistance working in 250℃
Perfect shape accuracy and higher concentrating efficiency
Thermal Bending OR bending and tempering
Higher Reflectivity and optical stability
Approval and cooperation with reputable international CSP EPC and Developers for CLFR technology. Bankability
Special sizes, focus length, aperture and shapes to be customized
Competitiveness with cost improvement
Application Pictures

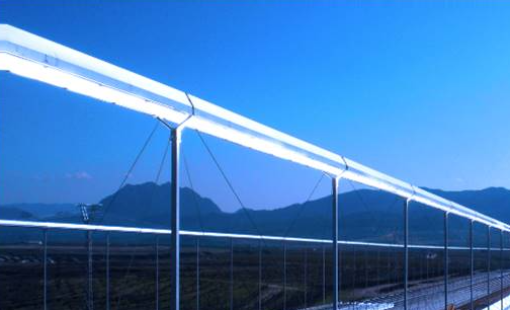

Linear Fresnel Applications
